DRIVEN PILES
Support for Foundations of Existing Structures

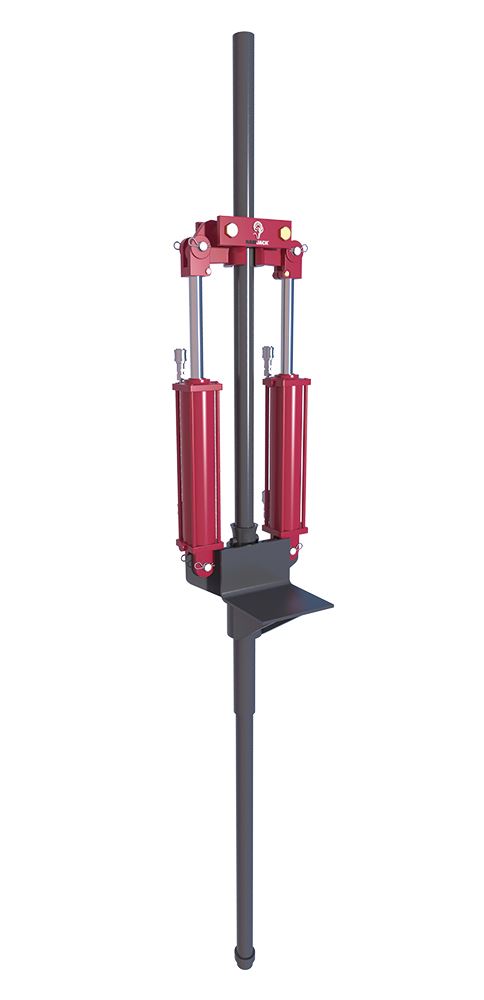

Driven steel piles are sometimes referred to as push or resistance piles. They are used to underpin the foundation of an existing structure. The piles are pushed into the soil with hydraulic cylinders by using the weight of the structure as a reaction force. Each pile is installed individually, utilizing the maximum resistance of the structure as a reaction force.
Ram Jack® manufactures three different sizes of driven steel piles: 2 ⅜”, 2 ⅞” and 3 ½” diameters. We also have the facility to custom fabricate any size for special orders.
Pile Components

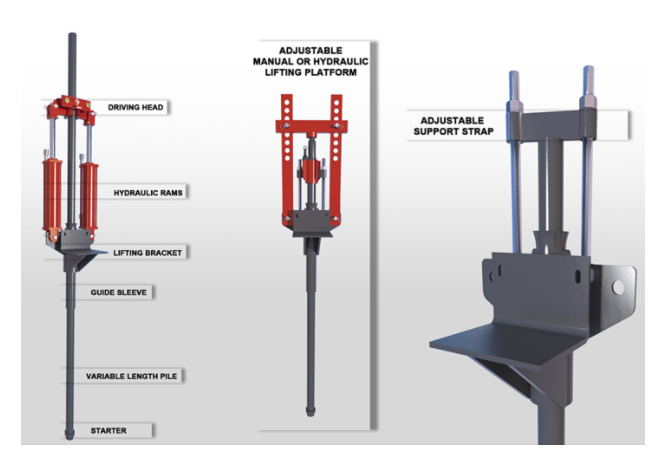

Our driven piles have four primary components.
These include the following:
-
Bracket
-
Guide Sleeve
-
Piling
-
Starter
Applications
Hydraulically-driven steel piles use the weight of the structure as a reaction force during installation, which means they are only used for remedial foundation repairs. The structure must have sufficient weight to allow enough force to be applied to the pile to reach a load-supporting strata.
Drawings & Technical Data
Driven Pile Installation Detail
Driven Pile Bracket W/Seat
#4021, #4021.1 (ICC-ES) – Specialty
Driven Pile Bracket W/Narrow Seat
#4001
Driven Pile Bracket Side Load (3.5 pile)
#4021.55
Driven Pile Wall Mount Bracket
#4027.DP
Driven Pile Bracket W/Seat
#4036.TB, #4036.1 (ICC-ES) – Specialty
Driven Pile Bracket W/Seat (2.375 pile)
#4038
Independent Guide Sleeve
Variable length, 2 7/8" External Sleeve Specifications
Independent Guide Sleeve
Variable length, 3 1/2" External Sleeve Specifications
Independent Guide Sleeve
Variable length, 4 1/2" External Sleeve Specifications
Driven Piling (2.375")
#4225
Driven Piling (2.875")
#4225
Driven Piling (3.5")
#4225
Driven Pile Starter (2.875”)
#4234
