ENGINEER RESOURCES
A One-Stop-Shop for Engineers & Contractors
Ram Jack® provides the best foundation solutions, products, and customer service. We stand by our products and services, supplementing them with quality resources for engineers approved by our in-house engineers and experts. Ram Jack is truly your one-stop-shop for all your engineering needs.
Product Catalog Download
View a copy of our latest Product Catalog with full specifications, part numbers, and load capacities for each standard product we offer.
How To Design Helical Piles
View a copy from Chapter 6 of our Technical Manual on How to Design Helical Piles per the IBC (International Building Code). 12 Page technical documentation.

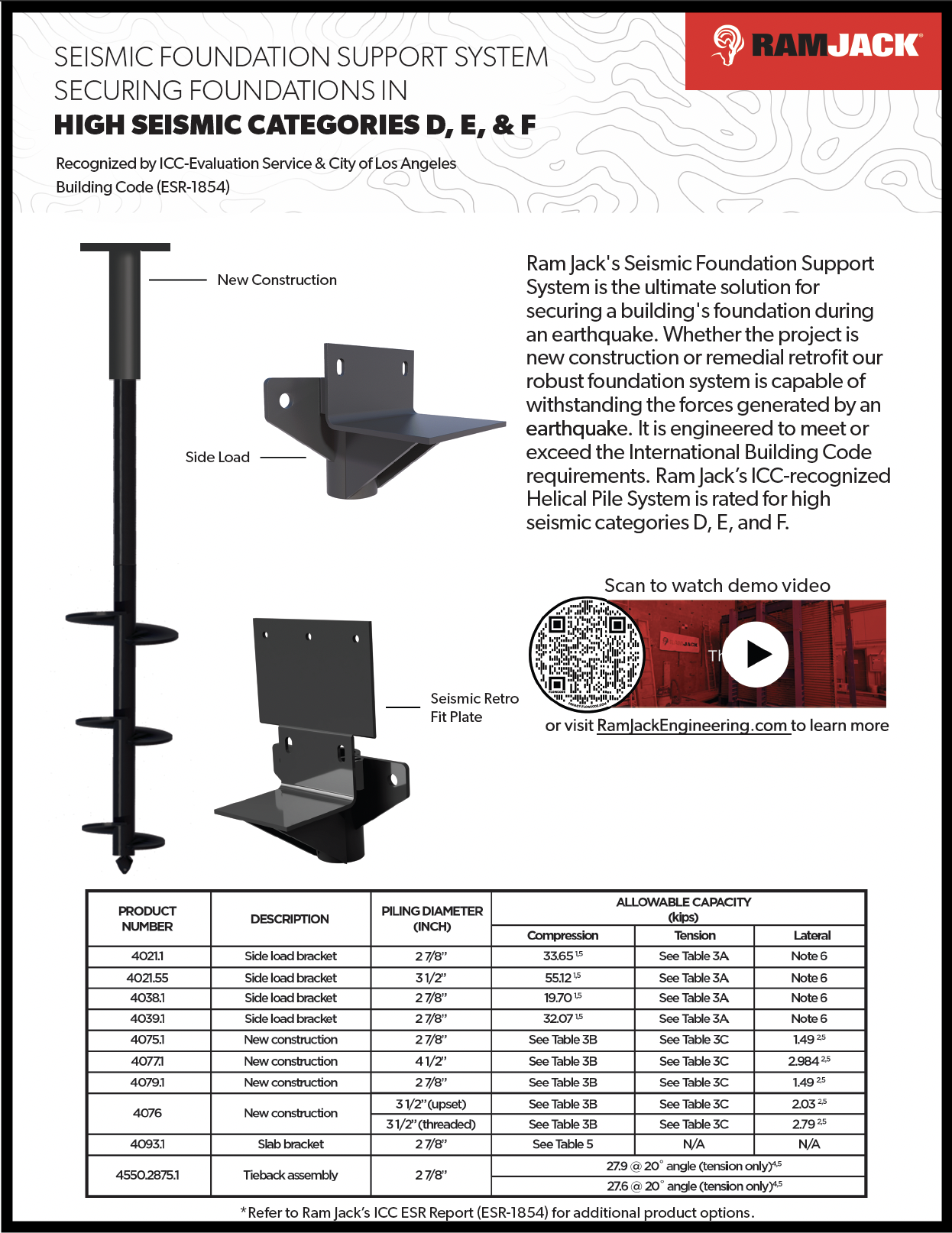

Seismic Support
Ram Jack's Seismic Foundation Support System is an effective solution for securing a building's foundation during an earthquake, with the ability to withstand seismic categories D, E, and F while meeting or exceeding International Building Code requirements.
Product Drawings & Specifications
Helicals: Ranging from 2 ⅜” to 8 ⅝” sizes with various connection types
Brackets: Including New Construction, Tieback, Remedial, Boardwalk and many more.
Driven: Driven Piles ranging in size from 3” to 4 ¼”
System Specifications
Each of our installation systems are designed to work effectively in different applications. These documents will provide you guidelines and specifications relating to each system.
Continuing Education Credits
Ram Jack® offers online education through V1 Media, an approved AIA continuing-education provider. AIA-approved courses are a valid form of Professional Development for Architecture, Engineering, and Construction (AEC) industries via self-learning courses in all states.
Current Courses Available:
Presented by Sam Rosenberk, P.E., Ph.D. - VP, Fortified Engineering Solutions
This webcast provides a brief introduction to helical piles and its applications in different types of soil conditions. In addition, we will be talking about the theory behind the development of load capacity by helical piles and its estimation.
2023: Helical Piles, Capacities and Applications
Archived Courses
Presented by Darin Willis, P.E. & Justin Presley.
Presentation will cover the performance of the Sign Dart foundation system
when installed in clay and sandy soils as well as when subjected to tension
and lateral loads, especially as compared to national standards for sign
mounting systems.
2020: Helical Piles : Ram Jack Sign Dart
Design Software
Get Started with our helical pile design software designed by engineers, for engineers. Enabling you to create and model helical piles in all soil conditions.
Lunch & Learns
Learn More about our free Lunch & Learn opportunities for engineers to learn more about the uses of Ram Jack’s helical pile system as well as our driven pile system.
Technical Manual
Request a copy of our Technical Manual. You’ll find information to utilize our helical and driven piles as well as verify compliance with current building codes and ICC-approved acceptance criteria.
